Processing RTSP Video Streams in Python: Latency and Buffer Problems

RECORD DATA

What RTSP is, and why it shows up on drone cameras

RTSP (Real Time Streaming Protocol) does not carry the video data itself; it controls the session — it is a protocol for commands like "play", "pause" and "send me this stream". The actual video packets flow over RTP (Real-time Transport Protocol). The camera runs an RTSP server, and you connect to it with a URL.

The reason it is so common on drone cameras is practical: the gimbal camera connects to the companion computer over Ethernet and serves the same stream to both the ground control station and the detection code from a single address. The address the ArduPilot documentation gives for the SIYI A8 mini and ZR10 is rtsp://192.168.144.25:8554/main.264, with a default IP of 192.168.144.25.

Opening the stream with OpenCV

OpenCV's FFmpeg backend supports RTSP directly. Options destined for FFmpeg are passed through the OPENCV_FFMPEG_CAPTURE_OPTIONS environment variable. The format is unusual: a semicolon separates a key from its value, and a pipe separates one pair from the next.

import os

# Must be set BEFORE the VideoCapture is created: OpenCV reads this
# variable while it opens the stream. Format: "key;value|key;value"
os.environ["OPENCV_FFMPEG_CAPTURE_OPTIONS"] = (
    "rtsp_transport;tcp"
    "|fflags;nobuffer"          # reduces buffering during the initial analysis
    "|max_delay;300000"         # microseconds -> 0.3 s
    "|reorder_queue_size;0"     # do not wait on out-of-order packets
    "|probesize;100000"         # default is 5,000,000 bytes
    "|analyzeduration;500000"   # default is 5,000,000 us (5 s)
)

import cv2

URL = "rtsp://192.168.144.25:8554/main.264"
cap = cv2.VideoCapture(URL, cv2.CAP_FFMPEG)
print(cap.isOpened(), cap.get(cv2.CAP_PROP_FRAME_WIDTH), cap.get(cv2.CAP_PROP_FPS))

import os

# Must be set BEFORE the VideoCapture is created: OpenCV reads this
# variable while it opens the stream. Format: "key;value|key;value"
os.environ["OPENCV_FFMPEG_CAPTURE_OPTIONS"] = (
    "rtsp_transport;tcp"
    "|fflags;nobuffer"          # reduces buffering during the initial analysis
    "|max_delay;300000"         # microseconds -> 0.3 s
    "|reorder_queue_size;0"     # do not wait on out-of-order packets
    "|probesize;100000"         # default is 5,000,000 bytes
    "|analyzeduration;500000"   # default is 5,000,000 us (5 s)
)

import cv2

URL = "rtsp://192.168.144.25:8554/main.264"
cap = cv2.VideoCapture(URL, cv2.CAP_FFMPEG)
print(cap.isOpened(), cap.get(cv2.CAP_PROP_FRAME_WIDTH), cap.get(cv2.CAP_PROP_FPS))

The defaults for probesize and analyzeduration stretch out the stream open; lowering them shortens the time to first frame. Go too low and FFmpeg cannot work out the stream format — step them down gradually and watch what isOpened() returns.

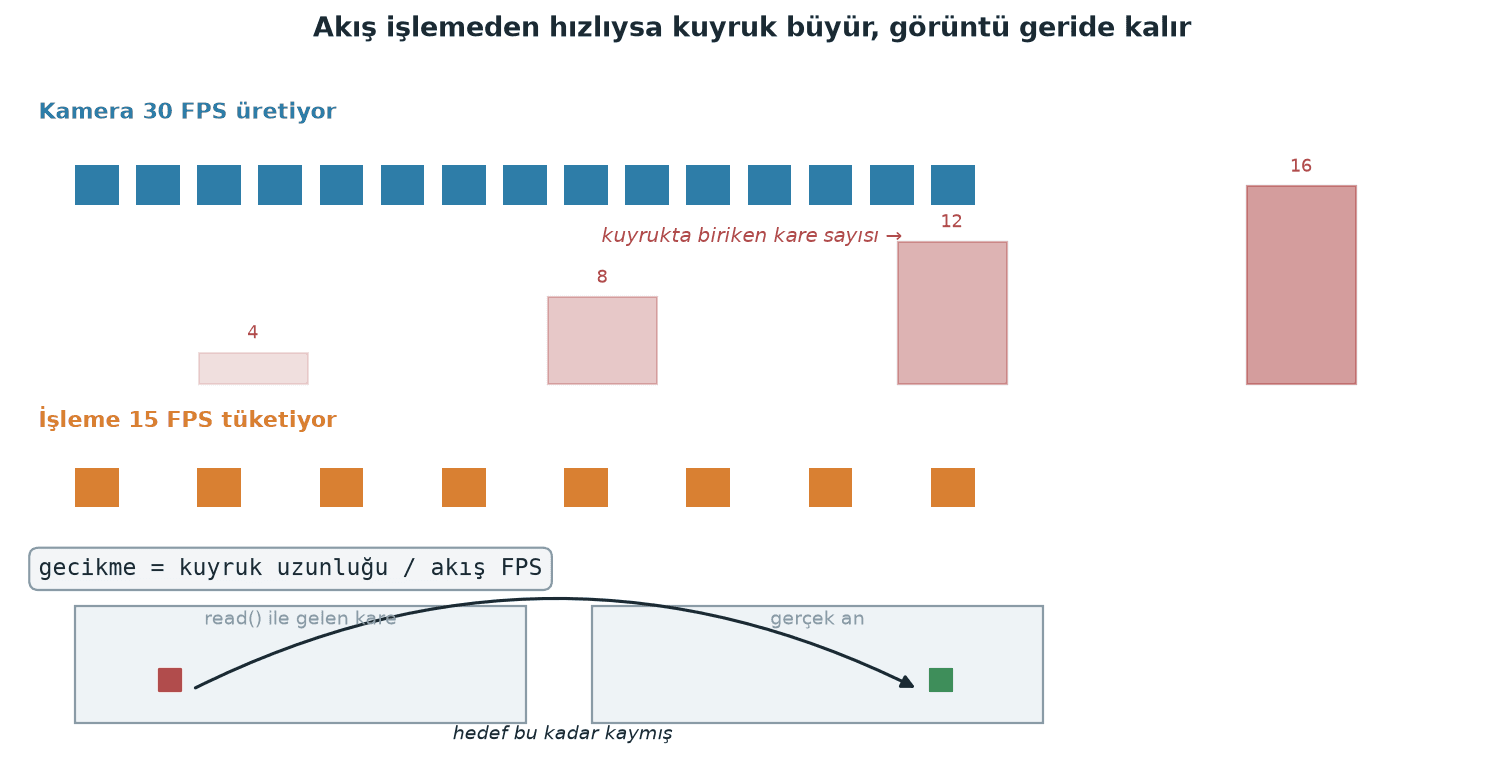

The real problem: the queue grows and the video falls behind

Simple arithmetic: if the stream produces 30 FPS (~33 ms per frame) and your loop processes 15 frames per second (~67 ms per frame), you fall 15 frames behind every second. After 10 seconds there are 150 frames in the queue, which is roughly 5 seconds of latency. In our flight configuration, YOLO11m runs at 15-20 FPS with full-frame inference at 640 pixels; as long as the stream rate is above that, the difference inevitably piles up.

The important part: this is not a fixed latency, it is a growing one. You can live with a constant 200 ms of lag; you cannot fly an autonomous drop with lag that grows every minute.

The fix: a reader thread that keeps only the newest frame

The right mental model is this: treat the stream not as a queue but as a single-slot box. A background thread reads continuously and overwrites the previous frame with every new one. Whenever the processing loop looks in the box, it finds the most recent frame; the frames it missed in between are dropped silently. In a detection system this is exactly the behavior we want — we would rather lose frames than lose freshness.

import threading
import time
import cv2

class FreshestFrame:
    """Reads an RTSP stream in the background, keeps only the LATEST frame.

    No queue: every new frame overwrites the previous one. If processing is
    slow, old frames are dropped, so latency never accumulates.
    """

    def __init__(self, url, backend=cv2.CAP_FFMPEG, reconnect_delay=2.0):
        self.url = url
        self.backend = backend
        self.reconnect_delay = reconnect_delay

        self._lock = threading.Lock()
        self._frame = None      # latest frame (BGR ndarray)
        self._seq = 0           # counter: keeps us from processing a frame twice
        self._stamp = 0.0       # when the frame was captured (monotonic)
        self._running = True

        self._cap = self._open()
        self._thread = threading.Thread(target=self._loop, daemon=True)
        self._thread.start()

    def _open(self):
        cap = cv2.VideoCapture(self.url, self.backend)
        # A no-op on the FFMPEG backend; works on backends like GStreamer/V4L2.
        cap.set(cv2.CAP_PROP_BUFFERSIZE, 1)
        return cap

    def _loop(self):
        fails = 0
        while self._running:
            if self._cap is None or not self._cap.isOpened():
                time.sleep(self.reconnect_delay)
                self._cap = self._open()
                continue

            ok, frame = self._cap.read()
            if not ok:
                fails += 1
                if fails >= 5:              # not a transient glitch, the link is down
                    self._cap.release()
                    self._cap = None
                    fails = 0
                continue

            fails = 0
            with self._lock:
                self._frame = frame
                self._seq += 1
                self._stamp = time.monotonic()

    def read(self, last_seq=0, timeout=1.0):
        """Return the latest frame; if last_seq is given, wait for a NEW one."""
        deadline = time.monotonic() + timeout
        while True:
            with self._lock:
                if self._frame is not None and self._seq > last_seq:
                    return self._seq, self._frame, self._stamp
            if time.monotonic() > deadline:
                return last_seq, None, 0.0
            time.sleep(0.002)

    def release(self):
        self._running = False
        self._thread.join(timeout=2.0)
        if self._cap is not None:
            self._cap.release()

import threading
import time
import cv2

class FreshestFrame:
    """Reads an RTSP stream in the background, keeps only the LATEST frame.

    No queue: every new frame overwrites the previous one. If processing is
    slow, old frames are dropped, so latency never accumulates.
    """

    def __init__(self, url, backend=cv2.CAP_FFMPEG, reconnect_delay=2.0):
        self.url = url
        self.backend = backend
        self.reconnect_delay = reconnect_delay

        self._lock = threading.Lock()
        self._frame = None      # latest frame (BGR ndarray)
        self._seq = 0           # counter: keeps us from processing a frame twice
        self._stamp = 0.0       # when the frame was captured (monotonic)
        self._running = True

        self._cap = self._open()
        self._thread = threading.Thread(target=self._loop, daemon=True)
        self._thread.start()

    def _open(self):
        cap = cv2.VideoCapture(self.url, self.backend)
        # A no-op on the FFMPEG backend; works on backends like GStreamer/V4L2.
        cap.set(cv2.CAP_PROP_BUFFERSIZE, 1)
        return cap

    def _loop(self):
        fails = 0
        while self._running:
            if self._cap is None or not self._cap.isOpened():
                time.sleep(self.reconnect_delay)
                self._cap = self._open()
                continue

            ok, frame = self._cap.read()
            if not ok:
                fails += 1
                if fails >= 5:              # not a transient glitch, the link is down
                    self._cap.release()
                    self._cap = None
                    fails = 0
                continue

            fails = 0
            with self._lock:
                self._frame = frame
                self._seq += 1
                self._stamp = time.monotonic()

    def read(self, last_seq=0, timeout=1.0):
        """Return the latest frame; if last_seq is given, wait for a NEW one."""
        deadline = time.monotonic() + timeout
        while True:
            with self._lock:
                if self._frame is not None and self._seq > last_seq:
                    return self._seq, self._frame, self._stamp
            if time.monotonic() > deadline:
                return last_seq, None, 0.0
            time.sleep(0.002)

    def release(self):
        self._running = False
        self._thread.join(timeout=2.0)
        if self._cap is not None:
            self._cap.release()

Using it, with frame age measured:

stream = FreshestFrame("rtsp://192.168.144.25:8554/main.264")
seq = 0
try:
    while True:
        seq, frame, stamp = stream.read(last_seq=seq, timeout=2.0)
        if frame is None:
            continue                       # no stream, do not spin the loop
        age_ms = (time.monotonic() - stamp) * 1000.0
        results = model.predict(frame, imgsz=640, conf=0.25, verbose=False)
        print(f"frame {seq} | age when processing starts: {age_ms:.0f} ms")
finally:
    stream.release()

stream = FreshestFrame("rtsp://192.168.144.25:8554/main.264")
seq = 0
try:
    while True:
        seq, frame, stamp = stream.read(last_seq=seq, timeout=2.0)
        if frame is None:
            continue                       # no stream, do not spin the loop
        age_ms = (time.monotonic() - stamp) * 1000.0
        results = model.predict(frame, imgsz=640, conf=0.25, verbose=False)
        print(f"frame {seq} | age when processing starts: {age_ms:.0f} ms")
finally:
    stream.release()

That age_ms line may be the most valuable thing in this post: you stop guessing at latency and start measuring it. If the number holds steady, you are fine; if it keeps climbing, there is still a queue somewhere.

Why CAP_PROP_BUFFERSIZE usually does nothing

The fix most often suggested online is cap.set(cv2.CAP_PROP_BUFFERSIZE, 1). In the OpenCV 4.x source, the FFmpeg backend's setProperty function never handles that property at all — only CAP_PROP_POS_MSEC, CAP_PROP_POS_FRAMES, CAP_PROP_POS_AVI_RATIO, CAP_PROP_FORMAT and CAP_PROP_CONVERT_RGB are handled. So with the RTSP + FFmpeg combination the call quietly does nothing, and set() comes back False.

We left it in the class above anyway: the same code does take effect when it runs against a USB camera (V4L2) or the GStreamer backend. The rule is this: always check the return value of your set() calls. OpenCV does not raise on an unsupported property, it just returns False.

FFmpeg options and the TCP/UDP decision

Option	What it does	When to use it
`rtsp_transport`	Selects the transport layer: `udp`, `tcp`, `udp_multicast`, `http`, `https`	When you deliberately want to override the default
`rtsp_flags;prefer_tcp`	Tries TCP first when it is available	OpenCV already does this by default
`fflags;nobuffer`	Reduces buffering during stream analysis	On every live stream
`max_delay`	Upper bound on demux delay (microseconds)	When you do not want it stalling on a lost packet
`reorder_queue_size`	Number of packets buffered for out-of-order reordering	When you want freshness on UDP and can accept the loss
`buffer_size`	Upper limit of the socket buffer, in bytes	When high-bitrate streams are dropping packets
`timeout`	Socket TCP I/O timeout (microseconds)	So a dead connection does not block forever

For rtsp:// addresses, OpenCV applies either rtsp_flags=prefer_tcp (newer libavformat) or rtsp_transport=tcp (older ones) by default, depending on the libavformat version. In other words, if you do nothing at all, you are already on TCP.

	TCP	UDP
Packet loss	Retransmitted, the frame stays intact	The loss stays, you get block artifacts
Latency behavior	Latency spikes the moment a packet is lost	Latency stays flat through the loss
Gateway/NAT	Usually no trouble	Can be blocked
When	Wired Ethernet with little loss; also when you are recording	Radio or shared links, when freshness matters more than frame integrity

Because the link between the gimbal and the companion computer on the aircraft is wired Ethernet, we stayed on TCP; when loss is already close to zero, whatever advantage UDP offers disappears.

Reconnection: unavoidable in flight

The camera reboots, a cable has a micro-dropout, the switch swallows a packet. The _loop above takes care of it: after 5 consecutive failed read() calls it releases the capture object and reopens it on the next pass. It matters that a single False return does not tear down the connection — transient frame errors are normal.

One warning: OpenCV's read() and open calls are blocking, and the default waits are long. CAP_PROP_OPEN_TIMEOUT_MSEC and CAP_PROP_READ_TIMEOUT_MSEC shorten them, but both are open-time only: they have to be passed in the parameter list, as in cv2.VideoCapture(url, cv2.CAP_FFMPEG, [cv2.CAP_PROP_OPEN_TIMEOUT_MSEC, 5000]), and cannot be changed afterwards with set(). Some opencv-python versions do not expose these constants, so check with hasattr(cv2, "CAP_PROP_OPEN_TIMEOUT_MSEC").

Common pitfalls

cap.set(CAP_PROP_BUFFERSIZE, 1) — writing it and assuming the problem is solved. It is a no-op on the FFmpeg backend; print the return value.
Setting the environment variable after the cv2.VideoCapture call. The variable is read while the stream is being opened; a later change does not affect that session.
Mixing up the separators. rtsp_transport;tcp|fflags;nobuffer is correct; a comma or an = causes the option to be silently ignored.
Putting codec-level flags into the demuxer dictionary. The contents of OPENCV_FFMPEG_CAPTURE_OPTIONS go to the stream open (avformat_open_input). Do not assume codec flags like ffplay -flags low_delay travel that path; do not take the effect on faith without measuring it.
Trying to "flush" the queue with a grab() loop. Throwing away a fixed number of frames only matches the rate difference you have at that moment; when the rate changes, either the latency comes back or you burn CPU for nothing. The thread approach tunes itself.
Never measuring frame age. Instead of eyeballing it and saying "looks laggy", add a one-line timestamp; that is the only way to see which change actually helped.
Staying on the software decoder on Jetson. On the Orin NX, a GStreamer pipeline that uses the hardware decoder (rtspsrc latency=0 ! rtph264depay ! h264parse ! nvv4l2decoder ! nvvidconv ! video/x-raw,format=BGRx ! videoconvert ! video/x-raw,format=BGR ! appsink drop=true max-buffers=1) frees the CPU for the detection model; and drop=true max-buffers=1 on the appsink moves that same "newest frame" logic into the pipeline itself.

Practical summary

Do not read the stream in your main loop. Set up a thread that reads in the background and holds the newest frame in a single-slot box; dropping frames beats accumulating latency.
Store the capture time of every frame and print its age in milliseconds when processing starts. A steady number is good; a rising number means there is still a queue.
Pass FFmpeg options through OPENCV_FFMPEG_CAPTURE_OPTIONS, before you create the capture object, in key;value|key;value form. Lowering probesize and analyzeduration gets you to the first frame faster.
Stay on TCP over wired Ethernet (OpenCV already prefers TCP by default). Only consider UDP on a radio or shared link, and only if you can give up frame integrity.
Write reconnection in from the start: release and reopen the capture after several consecutive failures, not on a single read() error; shorten the open/read timeouts through the constructor parameter.
